7.4: Pythagorean Theorem

  • Page ID
    24856
  • \( \newcommand{\vecs}[1]{\overset { \scriptstyle \rightharpoonup} {\mathbf{#1}} } \)

    \( \newcommand{\vecd}[1]{\overset{-\!-\!\rightharpoonup}{\vphantom{a}\smash {#1}}} \)

    \( \newcommand{\id}{\mathrm{id}}\) \( \newcommand{\Span}{\mathrm{span}}\)

    ( \newcommand{\kernel}{\mathrm{null}\,}\) \( \newcommand{\range}{\mathrm{range}\,}\)

    \( \newcommand{\RealPart}{\mathrm{Re}}\) \( \newcommand{\ImaginaryPart}{\mathrm{Im}}\)

    \( \newcommand{\Argument}{\mathrm{Arg}}\) \( \newcommand{\norm}[1]{\| #1 \|}\)

    \( \newcommand{\inner}[2]{\langle #1, #2 \rangle}\)

    \( \newcommand{\Span}{\mathrm{span}}\)

    \( \newcommand{\id}{\mathrm{id}}\)

    \( \newcommand{\Span}{\mathrm{span}}\)

    \( \newcommand{\kernel}{\mathrm{null}\,}\)

    \( \newcommand{\range}{\mathrm{range}\,}\)

    \( \newcommand{\RealPart}{\mathrm{Re}}\)

    \( \newcommand{\ImaginaryPart}{\mathrm{Im}}\)

    \( \newcommand{\Argument}{\mathrm{Arg}}\)

    \( \newcommand{\norm}[1]{\| #1 \|}\)

    \( \newcommand{\inner}[2]{\langle #1, #2 \rangle}\)

    \( \newcommand{\Span}{\mathrm{span}}\) \( \newcommand{\AA}{\unicode[.8,0]{x212B}}\)

    \( \newcommand{\vectorA}[1]{\vec{#1}}      % arrow\)

    \( \newcommand{\vectorAt}[1]{\vec{\text{#1}}}      % arrow\)

    \( \newcommand{\vectorB}[1]{\overset { \scriptstyle \rightharpoonup} {\mathbf{#1}} } \)

    \( \newcommand{\vectorC}[1]{\textbf{#1}} \)

    \( \newcommand{\vectorD}[1]{\overrightarrow{#1}} \)

    \( \newcommand{\vectorDt}[1]{\overrightarrow{\text{#1}}} \)

    \( \newcommand{\vectE}[1]{\overset{-\!-\!\rightharpoonup}{\vphantom{a}\smash{\mathbf {#1}}}} \)

    \( \newcommand{\vecs}[1]{\overset { \scriptstyle \rightharpoonup} {\mathbf{#1}} } \)

    \( \newcommand{\vecd}[1]{\overset{-\!-\!\rightharpoonup}{\vphantom{a}\smash {#1}}} \)

    \(\newcommand{\avec}{\mathbf a}\) \(\newcommand{\bvec}{\mathbf b}\) \(\newcommand{\cvec}{\mathbf c}\) \(\newcommand{\dvec}{\mathbf d}\) \(\newcommand{\dtil}{\widetilde{\mathbf d}}\) \(\newcommand{\evec}{\mathbf e}\) \(\newcommand{\fvec}{\mathbf f}\) \(\newcommand{\nvec}{\mathbf n}\) \(\newcommand{\pvec}{\mathbf p}\) \(\newcommand{\qvec}{\mathbf q}\) \(\newcommand{\svec}{\mathbf s}\) \(\newcommand{\tvec}{\mathbf t}\) \(\newcommand{\uvec}{\mathbf u}\) \(\newcommand{\vvec}{\mathbf v}\) \(\newcommand{\wvec}{\mathbf w}\) \(\newcommand{\xvec}{\mathbf x}\) \(\newcommand{\yvec}{\mathbf y}\) \(\newcommand{\zvec}{\mathbf z}\) \(\newcommand{\rvec}{\mathbf r}\) \(\newcommand{\mvec}{\mathbf m}\) \(\newcommand{\zerovec}{\mathbf 0}\) \(\newcommand{\onevec}{\mathbf 1}\) \(\newcommand{\real}{\mathbb R}\) \(\newcommand{\twovec}[2]{\left[\begin{array}{r}#1 \\ #2 \end{array}\right]}\) \(\newcommand{\ctwovec}[2]{\left[\begin{array}{c}#1 \\ #2 \end{array}\right]}\) \(\newcommand{\threevec}[3]{\left[\begin{array}{r}#1 \\ #2 \\ #3 \end{array}\right]}\) \(\newcommand{\cthreevec}[3]{\left[\begin{array}{c}#1 \\ #2 \\ #3 \end{array}\right]}\) \(\newcommand{\fourvec}[4]{\left[\begin{array}{r}#1 \\ #2 \\ #3 \\ #4 \end{array}\right]}\) \(\newcommand{\cfourvec}[4]{\left[\begin{array}{c}#1 \\ #2 \\ #3 \\ #4 \end{array}\right]}\) \(\newcommand{\fivevec}[5]{\left[\begin{array}{r}#1 \\ #2 \\ #3 \\ #4 \\ #5 \\ \end{array}\right]}\) \(\newcommand{\cfivevec}[5]{\left[\begin{array}{c}#1 \\ #2 \\ #3 \\ #4 \\ #5 \\ \end{array}\right]}\) \(\newcommand{\mattwo}[4]{\left[\begin{array}{rr}#1 \amp #2 \\ #3 \amp #4 \\ \end{array}\right]}\) \(\newcommand{\laspan}[1]{\text{Span}\{#1\}}\) \(\newcommand{\bcal}{\cal B}\) \(\newcommand{\ccal}{\cal C}\) \(\newcommand{\scal}{\cal S}\) \(\newcommand{\wcal}{\cal W}\) \(\newcommand{\ecal}{\cal E}\) \(\newcommand{\coords}[2]{\left\{#1\right\}_{#2}}\) \(\newcommand{\gray}[1]{\color{gray}{#1}}\) \(\newcommand{\lgray}[1]{\color{lightgray}{#1}}\) \(\newcommand{\rank}{\operatorname{rank}}\) \(\newcommand{\row}{\text{Row}}\) \(\newcommand{\col}{\text{Col}}\) \(\renewcommand{\row}{\text{Row}}\) \(\newcommand{\nul}{\text{Nul}}\) \(\newcommand{\var}{\text{Var}}\) \(\newcommand{\corr}{\text{corr}}\) \(\newcommand{\len}[1]{\left|#1\right|}\) \(\newcommand{\bbar}{\overline{\bvec}}\) \(\newcommand{\bhat}{\widehat{\bvec}}\) \(\newcommand{\bperp}{\bvec^\perp}\) \(\newcommand{\xhat}{\widehat{\xvec}}\) \(\newcommand{\vhat}{\widehat{\vvec}}\) \(\newcommand{\uhat}{\widehat{\uvec}}\) \(\newcommand{\what}{\widehat{\wvec}}\) \(\newcommand{\Sighat}{\widehat{\Sigma}}\) \(\newcommand{\lt}{<}\) \(\newcommand{\gt}{>}\) \(\newcommand{\amp}{&}\) \(\definecolor{fillinmathshade}{gray}{0.9}\)

    In a right triangle, the sides of the right angle are called the legs of the triangle and the remaining side is called the hypotenuse. In Figure \(\PageIndex{1}\), side \(AC\) and \(BC\) are the legs and side \(AB\) is the hypotenuse.

    clipboard_e90204b4e2ed8e21086d6caac07a505e7.png Figure \(\PageIndex{1}\): A right triangle.

    The following is one of the most famous theorems in mathematics.

    Theorem \(\PageIndex{1}\): Pythagorean Theorem

    In a right triangle, the square of the hypotenuse is equal to the sum of the squares of the legs. That is,

    \[\text{leg}^{2}+\text{leg}^{2}=\text{hypotenuse}^{2}\]

    Thus, for the sides of the triangle in Figure \(\PageIndex{1}\),

    \[a^{2}+b^{2}=c^{2} \nonumber\]

    Before we prove Theorem \(\PageIndex{1}\), we will give several examples.

    Example \(\PageIndex{1}\)

    Find \(x\)


    Solution

    \(\begin{array} {rcl} {\text{leg}^2 + \text{leg}^2} & = & {\text{hyp}^2} \\ {3^2 + 4^2} & = & {x^2} \\ {9 + 16} & = & {x^2} \\ {25} & = & {x^2} \\ {5} & = & {x} \end{array}\)

    Check:

    屏幕快照 2020-11-17 下午7.38.11.png

    Answer: \(x = 5\).

    Example \(\PageIndex{2}\)

    Find \(x\):


    Solution

    \(\begin{array} {rcl} {\text{leg}^2 + \text{leg}^2} & = & {\text{hyp}^2} \\ {5^2 + x^2} & = & {10^2} \\ {25 + x^2} & = & {100} \\ {x^2} & = & {75} \\ {x} & = & {\sqrt{75} = \sqrt{25} \sqrt{3} = 5\sqrt{3}} \end{array}\)

    Check:

    屏幕快照 2020-11-17 下午7.41.41.png

    Answer: \(x = 5\sqrt{3}\).

    Example \(\PageIndex{3}\)

    Find \(x\):


    Solution

    \(\begin{array} {rcl} {\text{leg}^2 + \text{leg}^2} & = & {\text{hyp}^2} \\ {5^2 + 5^2} & = & {x^2} \\ {25 + 25} & = & {x^2} \\ {50} & = & {x^2} \\ {x} & = & {\sqrt{50} = \sqrt{25} \sqrt{2} = 5\sqrt{2}} \end{array}\)

    Check:

    屏幕快照 2020-11-17 下午7.43.37.png

    Answer: \(x = 5\sqrt{2}\).

    Example \(\PageIndex{4}\)

    Find \(x\)


    Solution

    \(\begin{array} {rcl} {\text{leg}^2 + \text{leg}^2} & = & {\text{hyp}^2} \\ {x^2 + (x + 1)^2} & = & {(x + 2)^2} \\ {x^2 + x^2 + 2x + 1} & = & {x^2 + 4x + 4} \\ {x^2 + x^2 + 2x + 1 - x^2 - 4x - 4} & = & {0} \\ {x^2 - 2x - 3} & = & {0} \\ {(x - 3)(x + 1)} & = & {0} \end{array}\)

    \(\begin{array} {rcl} {x - 3} & = & {0} \\ {x} & = & {3} \end{array}\) \(\begin{array} {rcl} {x + 1} & = & {0} \\ {x} & = & {-1} \end{array}\)

    We reject \(x = -1\) because \(AC = x\) cannot be negative.

    Check, \(x = 3\):

    屏幕快照 2020-11-17 下午7.49.44.png

    Answer: \(x = 3\).

    We will now restate and prove Theorem \(\PageIndex{1}\):

    Theorem \(\PageIndex{1}\) Pythagorean Theorem

    In a right triangle, the square of the hypotenuse is equal to the sum of the squares of the legs. That is,

    \(\text{leg}^2 + \text{leg}^2 = \text{hypotenuse}^2.\)

    In Figure \(\PageIndex{1}\),

    \(a^2 + b^2 = c^2.\)

    clipboard_e23b400bdbb092d0a60d8eaa87f876363.png Figure \(\PageIndex{1}\). A right triangle. clipboard_e8252c1b03aac055dcf4fd9ba249b6087.png Figure \(\PageIndex{2}\). Draw \(CD\) perpendicular to \(AB\).
    Proof

    In Figure \(\PageIndex{1}\), draw \(CD\) perpendicular to \(AB\). Let \(x = AD\). Then \(BD = c - x\) (Figure \(\PageIndex{2}\)). As in Example \(\PageIndex{3}\), section 4.2, \(\triangle ABC \sim \triangle ACD\) and \(\triangle ABC \sim \triangle CBD\). From these two similarities we obtain two proportions:

    屏幕快照 2020-11-17 下午7.57.30.png

    The converse of the Pythagorean Theorem also holds:

    Theorem \(\PageIndex{2}\) (converse of the Pythagorean Theorem).

    In a triangle, if the square of one side is equal to the sun of the squares of the other two sides then the triangle is a right triangle.

    In Figure \(\PageIndex{3}\), if \(c^2 = a^2 + b^2\) then \(\triangle ABC\) is a right triangle with \(\angle C = 90^{\circ}\).

    clipboard_e32efa960b617195103c9bc7f5ef0214e.png Figure \(\PageIndex{3}\): If \(c^2 = a^2 + b^2\) then \(\angle C = 90^{\circ}\).
    Proof

    Draw a new triangle, \(\triangle DEF\), so that \(\angle F = 90^{\circ}\), \(d = a\), and \(e = b\) (Figure \(\PageIndex{4}\)). \(\triangle DEF\) is a right triangle, so by Theorem \(\PageIndex{1}\), \(f^2 = d^2 + e^2\). We have \(f^2 = d^2 + e^2 = a^2 + b^2 = c^2\) and therefore \(f = c\). Therefore \(\triangle ABC \cong \triangle DEF\) because \(SSS = SSS\). Therefore, \(\angle C + \angle F = 90^{\circ}\).

    屏幕快照 2020-11-17 下午8.06.53.png Figure \(\PageIndex{4}\): Given \(\triangle ABC\), draw \(\triangle DEF\) so that \(\angle F = 90^{\circ}\), \(d = a\) and \(e = b\).
    Example \(\PageIndex{5}\)

    Is \(\triangle ABC\) a right triangle?

    屏幕快照 2020-11-17 下午8.09.01.png

    Solution

    \(\text{AC}^2 = 7^2 = 49\)

    \(\text{BC}^2 = 9^2 = 81\)

    \(\text{AB}^2 = (\sqrt{130})^2 = 130\)

    \(49 + 81 = 130\).

    so by Theorem \(\PageIndex{2}\), \(\triangle ABC\) is a right triangle.

    Answer: yes.

    Example \(\PageIndex{6}\)

    Find \(x\) and \(AB\):

    屏幕快照 2020-11-17 下午8.12.34.png

    Solution

    \(\begin{array} {rcl} {x^2 + 12^2} & = & {13^2} \\ {x^2 + 144} & = & {169} \\ {x^2} & = & {169 - 144} \\ {x^2} & = & {25} \\ {x} & = & {5} \end{array}\)

    \(CDEF\) is a rectangle so \(EF = CD = 20\) and \(CF = DE = 12\). Therefore \(FB = 5\) and \(AB = AE + EF + FB = 5 + 20 + 5 = 30\).

    Answer: \(x = 5\), \(AB = 30\).

    Example \(\PageIndex{7}\)

    Find \(x\), \(AC\) and \(BD\):

    屏幕快照 2020-11-17 下午8.18.09.png

    Solution

    \(ABCD\) is a rhombus. The diagonals of a rhombus are perpendicular and bisect each other.

    \(\begin{array} {rcl} {6^2 + 8^2} & = & {x^2} \\ {36 + 64} & = & {x^2} \\ {100} & = & {x^2} \\ {10} & = & {x} \end{array}\)

    \(AC = 8 + 8 = 16, BD = 6 + 6 = 12.\)

    Answer: \(x = 10, AC = 16, BD = 12\).

    Example \(\PageIndex{8}\)

    A ladder 39 feet long leans against a building, How far up the side of the building does the ladder reach if the foot of the ladder is 15 feet from the building?

    屏幕快照 2020-11-17 下午8.21.43.png

    Solution

    \(\begin{array} {rcl} {\text{leg}^2 + \text{leg}^2} & = & {\text{hyp}^2} \\ {x^2 + 15^2} & = & {39^2} \\ {x^2 + 225} & = & {1521} \\ {x^2} & = & {1521 - 225} \\ {x^2} & = & {1296} \\ {x} & = & {\sqrt{1296} = 36} \end{array}\)

    Answer: 36 feet.

    Historical Note

    Pythagoras (c. 582 - 507 B.C.) was not the first to discover the theorem which bears his name. It was known long before his time by the Chinese, the Babylonians, and perhaps also the Egyptians and the Hindus, According to tradition, Pythagoras was the first to give a nroof of the theorem, His proof probably made use of areas, like the one suggested. In Figure \(\PageIndex{5}\) below, (each square contains four congruent right triangles with sides of lengths \(a\), \(b\), and \(c\), In addition the square on the left contains a square with side a and a square with side \(b\) while the one on the right contains a square with side c.)

    屏幕快照 2020-11-17 下午8.27.10.png Figure \(\PageIndex{5}\): Pythagoras may have proved \(a^2 + b^2 = c^2\) in this way. Since the time of Pythagoras, at least several hundred different proofs of the Pythagorean Theorem have been proposed, Pythagoras was the founder of the Pythagorean school, a secret religious society devoted to the study of philosophy, mathematics, and science. Its membership was a select group, which tended to keep the discoveries and practices of the society secret from outsiders. The Pythagoreans believed that numbers were the ultimate components of the universe and that all physical relationships could be expressed with whole numbers, This belief was prompted in part by their discovery that the notes of the musical scale were related by numerical ratios. The Pythagoreans made important contributions to medicine, physics, and astronomy, In geometry, they are credited with the angle s

    um theorem for triangles, the properties of parallel lines, and the theory of similar triangles and proportions.

    Problems

    1 - 10. Find \(x\). Leave answers in simplest radical form.

    1.

    Screen Shot 2020-11-17 at 8.44.19 PM.png

    2.

    Screen Shot 2020-11-17 at 8.44.39 PM.png

    3.

    Screen Shot 2020-11-17 at 8.45.25 PM.png

    4.

    Screen Shot 2020-11-17 at 8.45.43 PM.png

    5.

    Screen Shot 2020-11-17 at 8.46.01 PM.png

    6.

    Screen Shot 2020-11-17 at 8.46.20 PM.png

    7.

    Screen Shot 2020-11-17 at 8.46.36 PM.png

    8.

    Screen Shot 2020-11-17 at 8.46.50 PM.png

    9.

    Screen Shot 2020-11-17 at 8.47.05 PM.png

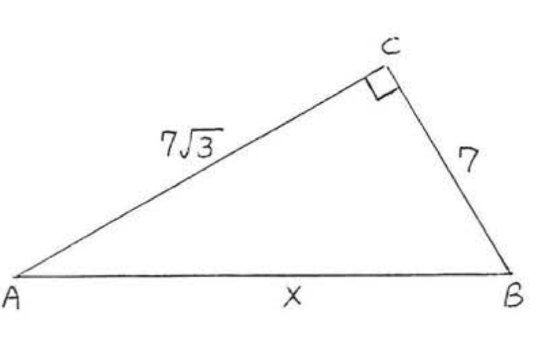

    10.

    Screen Shot 2020-11-17 at 8.47.21 PM.png

    11 - 14. Find \(x\) and all sides of the triangle:

    11.

    Screen Shot 2020-11-17 at 8.47.45 PM.png

    12.

    Screen Shot 2020-11-17 at 8.48.03 PM.png

    13.

    Screen Shot 2020-11-17 at 8.48.17 PM.png

    14.

    Screen Shot 2020-11-17 at 8.48.44 PM.png

    15 - 16. Find \(x\):

    15.

    Screen Shot 2020-11-17 at 8.49.03 PM.png

    16.

    Screen Shot 2020-11-17 at 8.49.18 PM.png

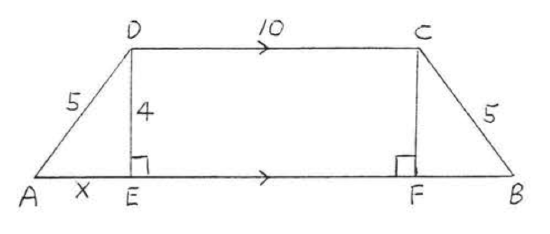

    17. Find \(x\) and \(AB\).

    Screen Shot 2020-11-17 at 8.49.42 PM.png

    18. Find \(x\):

    Screen Shot 2020-11-17 at 8.49.59 PM.png

    19. Find \(x, AC\) and \(BD\):

    Screen Shot 2020-11-17 at 8.50.15 PM.png

    20. Find \(x, AC\) and \(BD\):

    Screen Shot 2020-11-17 at 8.50.56 PM.png

    21. Find \(x\) and \(y\):

    Screen Shot 2020-11-17 at 8.51.15 PM.png

    22. Find \(x\), \(AC\) and \(BD\):

    Screen Shot 2020-11-17 at 8.51.34 PM.png

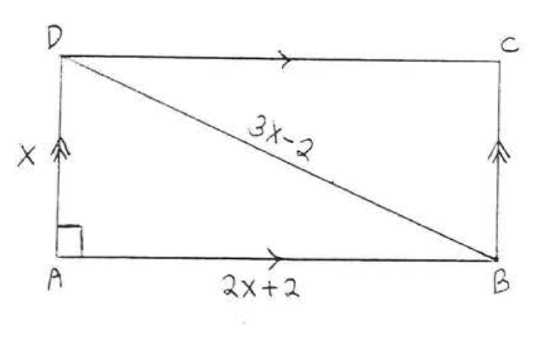

    23. Find \(x, AB\) and \(BD\):

    Screen Shot 2020-11-17 at 8.51.56 PM.png

    24. Find \(x, AB\) and \(AD\):

    Screen Shot 2020-11-17 at 8.52.15 PM.png

    25 - 30. Is \(\triangle ABC\) a right triangle?

    25.

    Screen Shot 2020-11-17 at 8.52.34 PM.png

    26.

    Screen Shot 2020-11-17 at 8.52.49 PM.png

    27.

    Screen Shot 2020-11-17 at 8.53.26 PM.png

    28.

    Screen Shot 2020-11-17 at 8.53.42 PM.png

    29.

    Screen Shot 2020-11-17 at 8.53.57 PM.png

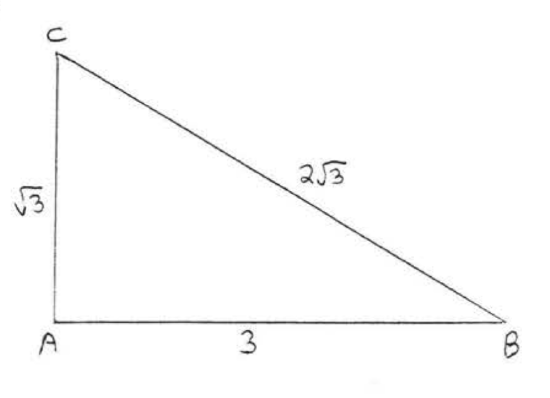

    30.

    Screen Shot 2020-11-17 at 8.54.13 PM.png

    31. A ladder 25 feet long leans against a building, How far up the side of the building does the ladder reach if the foot of the ladder is 7 feet from the building?

    32. A man travels 24 miles east and then 10 miles north. At the end of his journey how far is he from his starting point?

    33. Can a table 9 feet wide (with its legs folded) fit through a rectangular doorway 4 feet by 8 feet?

    Screen Shot 2020-11-17 at 8.54.30 PM.png

    34. A baseball diamond is a square 90 feet on each side, Find the distance from home plate to second base (leave answer in simplest radical form).

    Screen Shot 2020-11-17 at 8.55.11 PM.png
