    Learning Objectives

    • Define "distribution"
    • Interpret a frequency distribution
    • Distinguish between a frequency distribution and a probability distribution
    • Construct a grouped frequency distribution for a continuous variable
    • Identify the skew of a distribution
    • Identify bimodal, leptokurtic, and platykurtic distributions

    Distributions of Discrete Variables

    A recently purchased a bag of Plain M&M's contained candies of six different colors. A quick count showed that there were \(55\) M&M's: \(17\) brown, \(18\) red, \(7\) yellow, \(7\) green, \(2\) blue, and \(4\) orange. These counts are shown below in Table \(\PageIndex{1}\).

    Table \(\PageIndex{1}\): Frequencies in the Bag of M&M's
    Color Frequency
    Brown 17
    Red 18
    Yellow 7
    Green 7
    Blue 2
    Orange 4

    This table is called a frequency table and it describes the distribution of M&M color frequencies. Not surprisingly, this kind of distribution is called a frequency distribution. Often a frequency distribution is shown graphically as in Figure \(\PageIndex{1}\).

    alt

    Figure \(\PageIndex{1}\): Distribution of \(55\) M&M's.

    The distribution shown in Figure \(\PageIndex{1}\) concerns just my one bag of M&M's. You might be wondering about the distribution of colors for all M&M's. The manufacturer of M&M's provides some information about this matter, but they do not tell us exactly how many M&M's of each color they have ever produced. Instead, they report proportions rather than frequencies. Figure \(\PageIndex{2}\) shows these proportions. Since every M&M is one of the six familiar colors, the six proportions shown in the figure add to one. We call Figure \(\PageIndex{2}\) a probability distribution because if you choose an M&M at random, the probability of getting, say, a brown M&M is equal to the proportion of M&M's that are brown (\(0.30\)).

    alt
    Figure \(\PageIndex{2}\): Distribution of all M&M's.

    Notice that the distributions in Figures \(\PageIndex{1}\) and \(\PageIndex{2}\) are not identical. Figure \(\PageIndex{1}\) portrays the distribution in a sample of \(55\) M&M's. Figure \(\PageIndex{2}\) shows the proportions for all M&M's. Chance factors involving the machines used by the manufacturer introduce random variation into the different bags produced. Some bags will have a distribution of colors that is close to Figure \(\PageIndex{2}\); others will be further away.

    Continuous Variables

    The variable "color of M&M" used in this example is a discrete variable, and its distribution is also called discrete. Let us now extend the concept of a distribution to continuous variables. The data shown in Table \(\PageIndex{2}\) are the times it took one of us (DL) to move the mouse over a small target in a series of \(20\) trials. The times are sorted from shortest to longest. The variable "time to respond" is a continuous variable. With time measured accurately (to many decimal places), no two response times would be expected to be the same. Measuring time in milliseconds (thousandths of a second) is often precise enough to approximate a continuous variable in Psychology. As you can see in Table \(\PageIndex{2}\), measuring DL's responses this way produced times no two of which were the same. As a result, a frequency distribution would be uninformative: it would consist of the \(20\) times in the experiment, each with a frequency of \(1\).

    Table \(\PageIndex{2}\): Response Times
    568 720
    577 728
    581 729
    640 777
    641 808
    645 824
    657 825
    673 865
    696 875
    703 1007

    The solution to this problem is to create a grouped frequency distribution. In a grouped frequency distribution, scores falling within various ranges are tabulated. Table \(\PageIndex{3}\) shows a grouped frequency distribution for these \(20\) times.

    Table \(\PageIndex{3}\): Grouped frequency distribution
    Range Frequency
    500-600 3
    600-700 6
    700-800 5
    800-900 5
    900-1000 0
    1000-1100 1

    Grouped frequency distributions can be portrayed graphically. Figure \(\PageIndex{3}\) shows a graphical representation of the frequency distribution in Table \(\PageIndex{3}\). This kind of graph is called a histogram. A later chapter contains an entire section devoted to histograms.

    alt
    Figure \(\PageIndex{3}\): A histogram of the grouped frequency distribution shown in Table \(\PageIndex{3}\). The labels on the \(X\)-axis are the middle values of the range they represent.

    Probability Densities

    The histogram in Figure \(\PageIndex{3}\) portrays just DL's \(20\) times in the one experiment he performed. To represent the probability associated with an arbitrary movement (which can take any positive amount of time), we must represent all these potential times at once. For this purpose, we plot the distribution for the continuous variable of time. Distributions for continuous variables are called continuous distributions. They also carry the fancier name probability density. Some probability densities have particular importance in statistics. A very important one is shaped like a bell, and called the normal distribution. Many naturally-occurring phenomena can be approximated surprisingly well by this distribution. It will serve to illustrate some features of all continuous distributions.

    An example of a normal distribution is shown in Figure \(\PageIndex{4}\). Do you see the "bell"? The normal distribution doesn't represent a real bell, however, since the left and right tips extend indefinitely (we can't draw them any further so they look like they've stopped in our diagram). The \(Y\)-axis in the normal distribution represents the "density of probability." Intuitively, it shows the chance of obtaining values near corresponding points on the \(X\)-axis. In Figure \(\PageIndex{4}\), for example, the probability of an observation with value near \(40\) is about half of the probability of an observation with value near \(50\). (For more information, please see the chapter on normal distributions.)

    Although this text does not discuss the concept of probability density in detail, you should keep the following ideas in mind about the curve that describes a continuous distribution (like the normal distribution). First, the area under the curve equals \(1\). Second, the probability of any exact value of \(X\) is \(0\). Finally, the area under the curve and bounded between two given points on the \(X\)-axis is the probability that a number chosen at random will fall between the two points. Let us illustrate with DL's hand movements. First, the probability that his movement takes some amount of time is one! (We exclude the possibility of him never finishing his gesture.) Second, the probability that his movement takes exactly \(598.956432342346576\) milliseconds is essentially zero. (We can make the probability as close as we like to zero by making the time measurement more and more precise.) Finally, suppose that the probability of DL's movement taking between \(600\) and \(700\) milliseconds is one tenth. Then the continuous distribution for DL's possible times would have a shape that places \(10\%\) of the area below the curve in the region bounded by \(600\) and \(700\) on the \(X\)-axis.

    alt

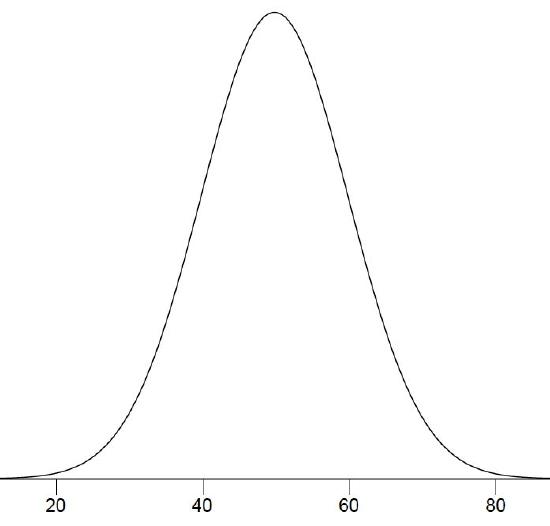

    Figure \(\PageIndex{4}\): A normal distribution.

    Shapes of Distributions

    Distributions have different shapes; they don't all look like the normal distribution in Figure \(\PageIndex{4}\). For example, the normal probability density is higher in the middle compared to its two tails. Other distributions need not have this feature. There is even variation among the distributions that we call "normal." For example, some normal distributions are more spread out than the one shown in Figure \(\PageIndex{4}\) (their tails begin to hit the \(X\)-axis further from the middle of the curve -- for example, at \(10\) and \(90\) if drawn in place of Figure \(\PageIndex{4}\)). Others are less spread out (their tails might approach the \(X\)-axis at \(30\) and \(70\)). More information on the normal distribution can be found in a later chapter completely devoted to them.

    The distribution shown in Figure \(\PageIndex{4}\) is symmetric; if you folded it in the middle, the two sides would match perfectly. Figure \(\PageIndex{5}\) shows the discrete distribution of scores on a psychology test. This distribution is not symmetric: the tail in the positive direction extends further than the tail in the negative direction. A distribution with the longer tail extending in the positive direction is said to have a positive skew. It is also described as "skewed to the right."

    alt
    Figure \(\PageIndex{5}\): (left) A distribution with a positive skew.

    Figure \(\PageIndex{6}\) shows the salaries of major league baseball players in 1974 (in thousands of dollars). This distribution has an extreme positive skew.

    alt
    Figure \(\PageIndex{6}\): (right) A distribution with a very large positive skew.

    A continuous distribution with a positive skew is shown in Figure \(\PageIndex{7}\).

    alt
    Figure \(\PageIndex{7}\): A continuous distribution with a positive skew.

    Although less common, some distributions have a negative skew. Figure \(\PageIndex{8}\) shows the scores on a \(20\)-point problem on a statistics exam. Since the tail of the distribution extends to the left, this distribution is skewed to the left.

    alt
    Figure \(\PageIndex{8}\): A distribution with negative skew.

    The histogram in Figure \(\PageIndex{8}\) shows the frequencies of various scores on a \(20\)-point question on a statistics test.

    alt

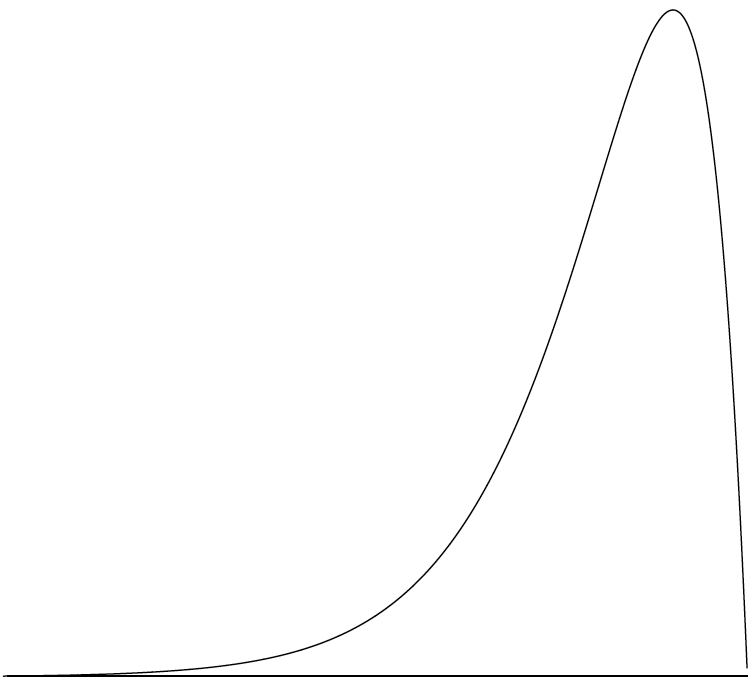

    Figure \(\PageIndex{9}\): A continuous distribution with a negative skew.

    A continuous distribution with a negative skew is shown in Figure \(\PageIndex{9}\). The distributions shown so far all have one distinct high point or peak. The distribution in Figure \(\PageIndex{10}\) has two distinct peaks. A distribution with two peaks is called a bimodal distribution.

    alt
    Figure \(\PageIndex{10}\). Frequencies of times between eruptions of the Old Faithful geyser. Notice the two distinct peaks: one at 1.75 and the other at 4.25.

    Distributions also differ from each other in terms of how large or "fat" their tails are. Figure \(\PageIndex{11}\) shows two distributions that differ in this respect. The upper distribution has relatively more scores in its tails; its shape is called leptokurtic. The lower distribution has relatively fewer scores in its tails; its shape is called platykurtic.

    alt
    Figure \(\PageIndex{11}\). Distributions differing in kurtosis. The top distribution has long tails. It is called "leptokurtic." The bottom distribution has short tails. It is called "platykurtic."

    Contributors and Attributions

    • Online Statistics Education: A Multimedia Course of Study (http://onlinestatbook.com/). Project Leader: David M. Lane, Rice University.

    • David M. Lane and Heidi Ziemer

    This page titled 1.10: Distributions is shared under a Public Domain license and was authored, remixed, and/or curated by David Lane via source content that was edited to the style and standards of the LibreTexts platform.
