    Learning Objectives
    • Use a Venn diagram to illustrate the relationship between 2 and 3 sets
    • Create an expression relating 2 and 3 sets from a Venn diagram

    To visualize the interaction of sets, John Venn in 1880 thought to use overlapping circles, building on a similar idea used by Leonhard Euler in the 18th century. These illustrations now called Venn Diagrams.

    Venn Diagram

    A Venn diagram represents each set by a circle, usually drawn inside of a containing box representing the universal set. Overlapping areas indicate elements common to both sets.

    Basic Venn diagrams can illustrate the interaction of two or three sets.

    Example \(\PageIndex{1}\)

    Create Venn diagrams to illustrate \(A \cup B, A \cap B,\) and \(A' \cap B\).

    Solution

    \(A \cup B\) contains all elements in either set.


    \(A \cap B\) contains only those elements in both sets - in the overlap of the circles.

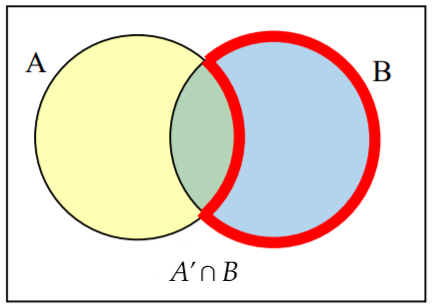

    \(A' \cap B\) contains the elements of \(B\) that are not in \(A\).


    Example \(\PageIndex{2}\)

    Use a Venn diagram to illustrate \((H \cap F)' \cap W\).

    Solution

    We'll start by identifying everything in the set \(\mathrm{H} \cap F\).


    Now, \((H \cap F)' \cap W\) will contain everything not in the set identified above that is also in set \(W\).


    Example \(\PageIndex{3}\)

    Create an expression to represent the outlined part of the Venn diagram shown.


    Solution

    The elements in the outlined set are in sets \(\mathrm{H}\) and \(F\), but are not in set \(W\). So we could represent this set as \(H \cap F \cap W' \).

    Try It \(\PageIndex{1}\)

    Create an expression to represent the outlined portion of the Venn diagram shown


    Answer

    \( \left( A \cup B \right) \cap C'\)
