In addition to using a second symmetric link function, you should use the two main asymmetric link functions: the complementary log-log and the log-log link function.
The Complementary Log-Log Link (cloglog)

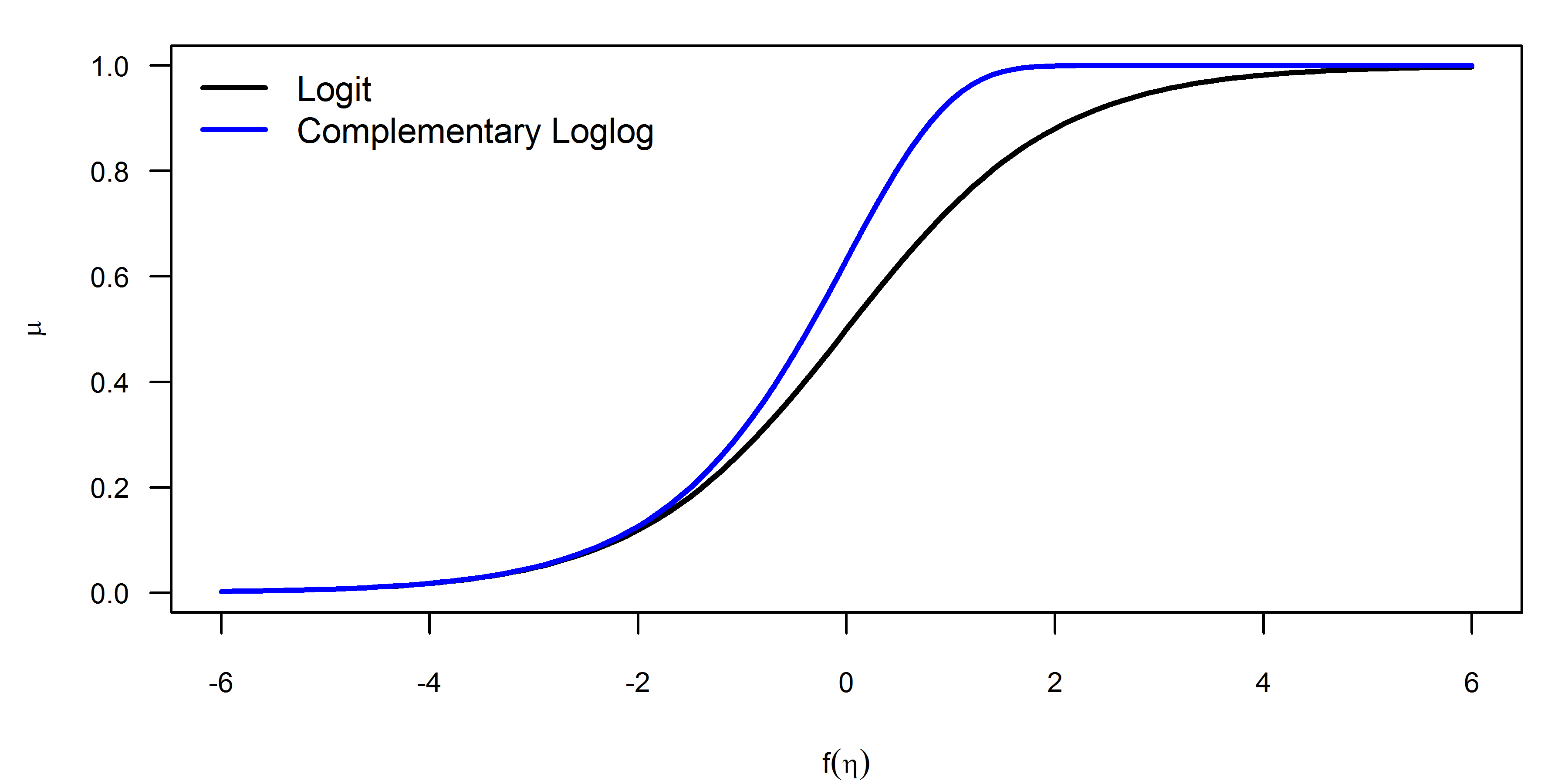

As mentioned earlier, there are several other available links functions beyond the logit link (see the earlier table of link functions). Actually, for binary response variables, all that is required of the link function is for it to be increasing, to smoothly map \(g \colon (0, 1) \mapsto \mathbb{R}\), and to have an inverse that smoothly maps \(g^{-1} \colon \mathbb{R} \mapsto (0, 1)\). As mentioned earlier, the logit link is symmetric. If you are dealing with rare-events data, you may not want to use a symmetric link function. The complementary log-log link is asymmetric and is often useful (see Figure \(\PageIndex{1}\) below).
The formula for the complementary log-log is
\[ g(\pi) \stackrel{\text{def}}{=} \log\Big(-\log(1-\pi)\Big) \]
Its inverse is
\[ g^{-1}(\eta) = 1 - \exp\Big( -\exp(\eta) \Big) \]
The plot of the complementary log-log function is seen in the figure above, overlaid with the same plot for the logit link. Note the difference in shapes. Recall that the logit link is symmetric. The complementary log-log is not; it approaches its maximum value more steeply than the logit.
Because of this asymmetry, it will fit models differently. Let us fit the coin data with a complementary log-log link. The command is
glm(head~trial, family=binomial(link="cloglog"), data=coin)
Note that the only change is in the link clause. The results of this new model are provided in the table below. Note that the direction of effect is the same in both models. Unfortunately, as the first model is in logit units and the second model is in complementary log-log units, comparing the magnitude of the coefficients tells us nothing. Comparing predictions tells us much more.
Using the logit model, the prediction for \(\pi_1\) was 0.095. Using the complementary log-log model, the prediction is \(\pi_1 = 0.122\), which is closer to the true value of \(\pi_1=0.150\).
Estimate Std. Err z value Pr(> |z|)
Constant term -2.0651 0.4353 -4.74 << 0.0001
Trial number 0.0244 0.0063 3.86 0.0001
The Log-Log Link

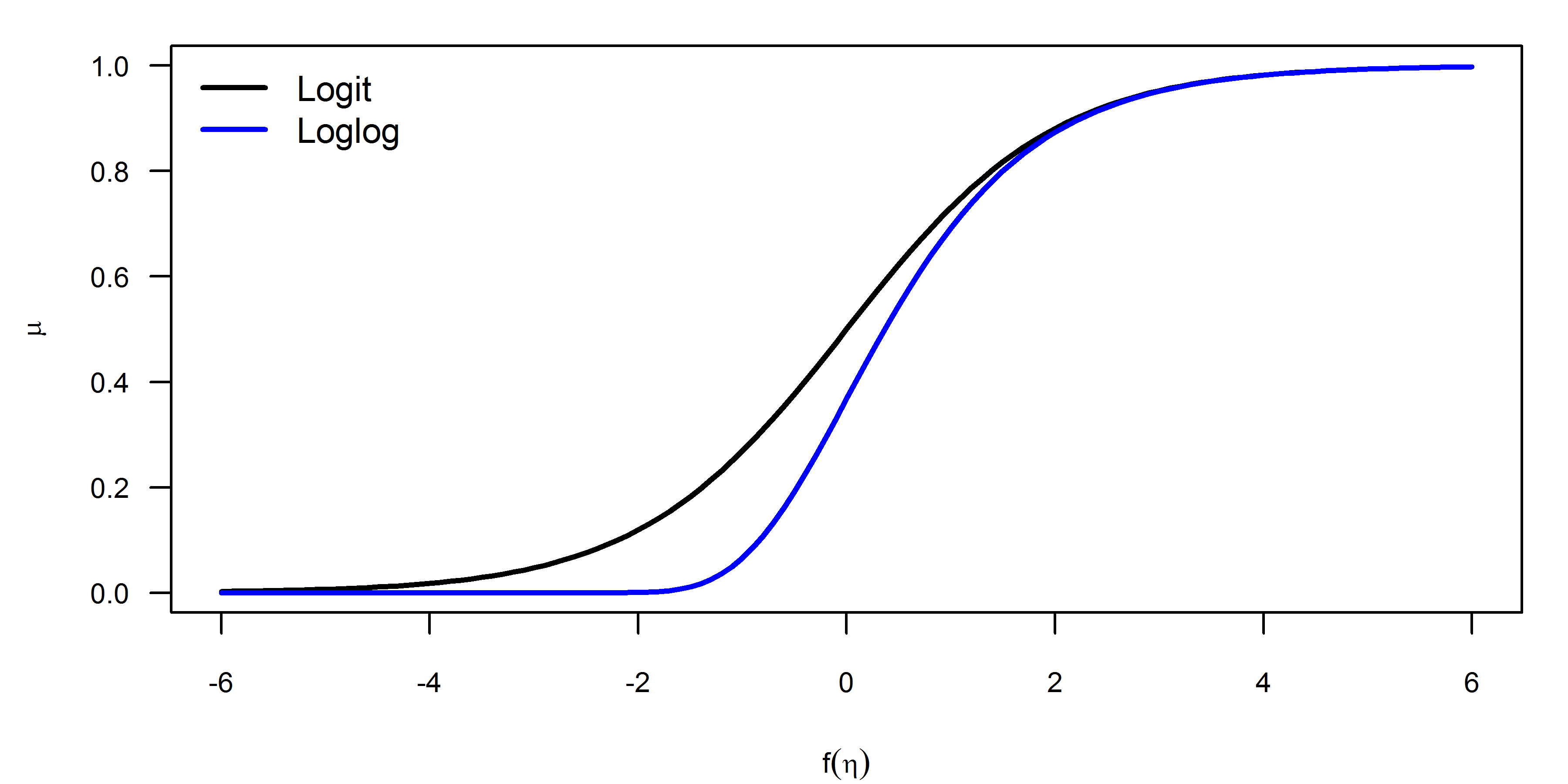

A second useful asymmetrical link function is the log-log link (see Figure \(\PageIndex{2}\) below). Note that the asymmetric log-log link rises to its maximum much slower than either the symmetric logit link or the asymmetric complementary log-log link. Because of this functional shape, it will be better at fitting certain data sets better than the other link functions discussed.
In reality, there is a functional relationship between the complementary log-log and the log-log link functions. They are \(180^\circ\) rotations of each other. Thus, statistical programs either have no support for either or have support only one. Like most statistics packages, R has native support for only one of the two. For R, it is the complementary log-log link.
This is actually a decision of history. From how I (and most) have presented the binary dependent variable models, it seems as though we statisticians started with the logit. The first use of this type of regression, however, used the complementary log-log function (Fisher). It was not pretty, but it was a fantastic step in the right direction!
The command to perform the log-log regression on this data is the same as before, except for the link parameter, which is now
link=make.link("loglog")
With this, I leave it as an exercise for you to show that the effect of trials in the log-log model is 0.0233 and that the predicted probability of a head for Coin 1 using this model is 0.0498.
